Aliens Smart Agriculture & Forestry Solutions
we move at speeds of light and sound
PRODUCTS & TECHNOLOGY

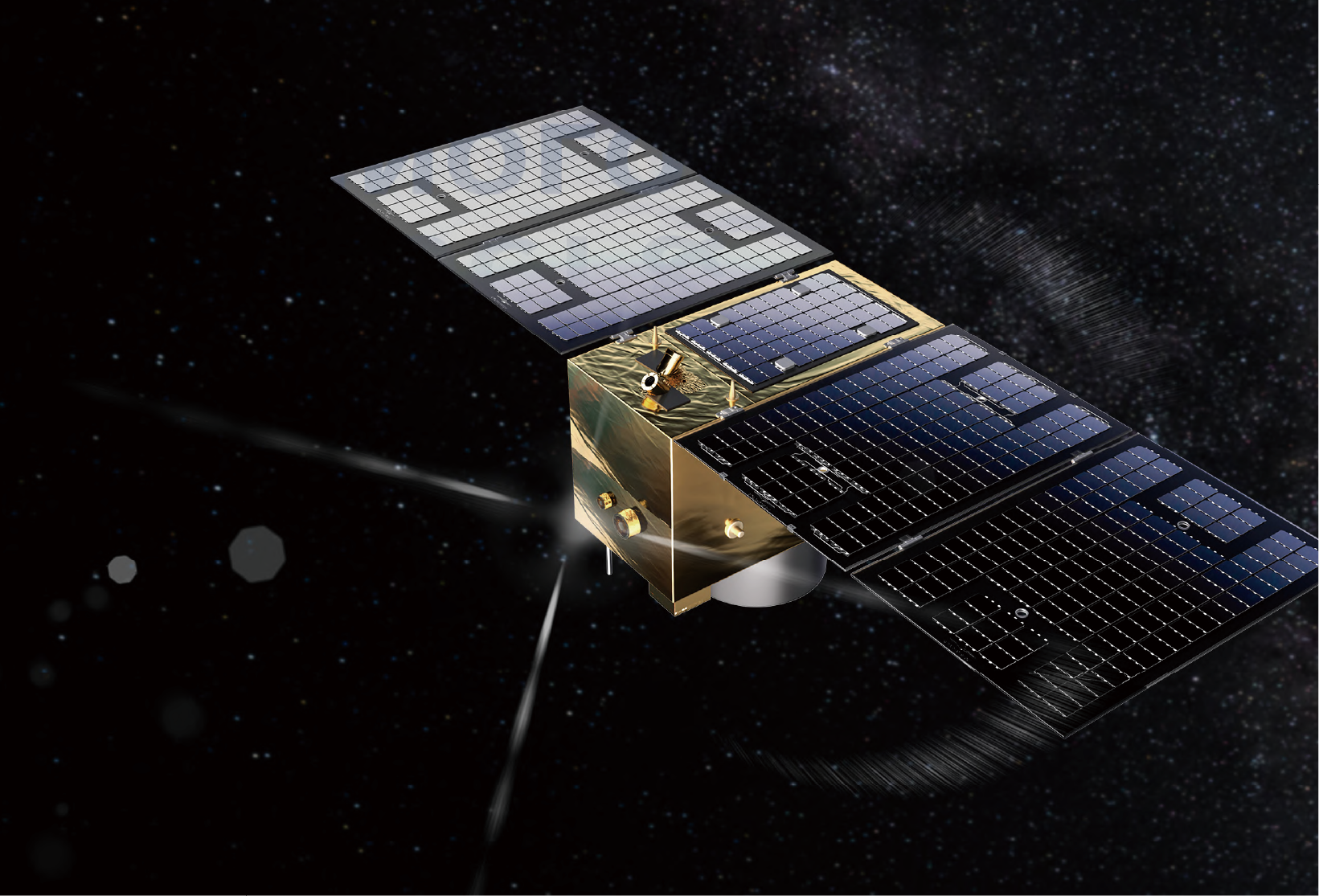

Wonder Journey
Sub-Meter Optical Remote Sensing Satellite
- Mass of 60kg
- Optical Resolution <1 Meter
- Multispectral Resolution <2.5 Meter
- On-Orbit EDGE Al with 60+ TOPS Computing Power

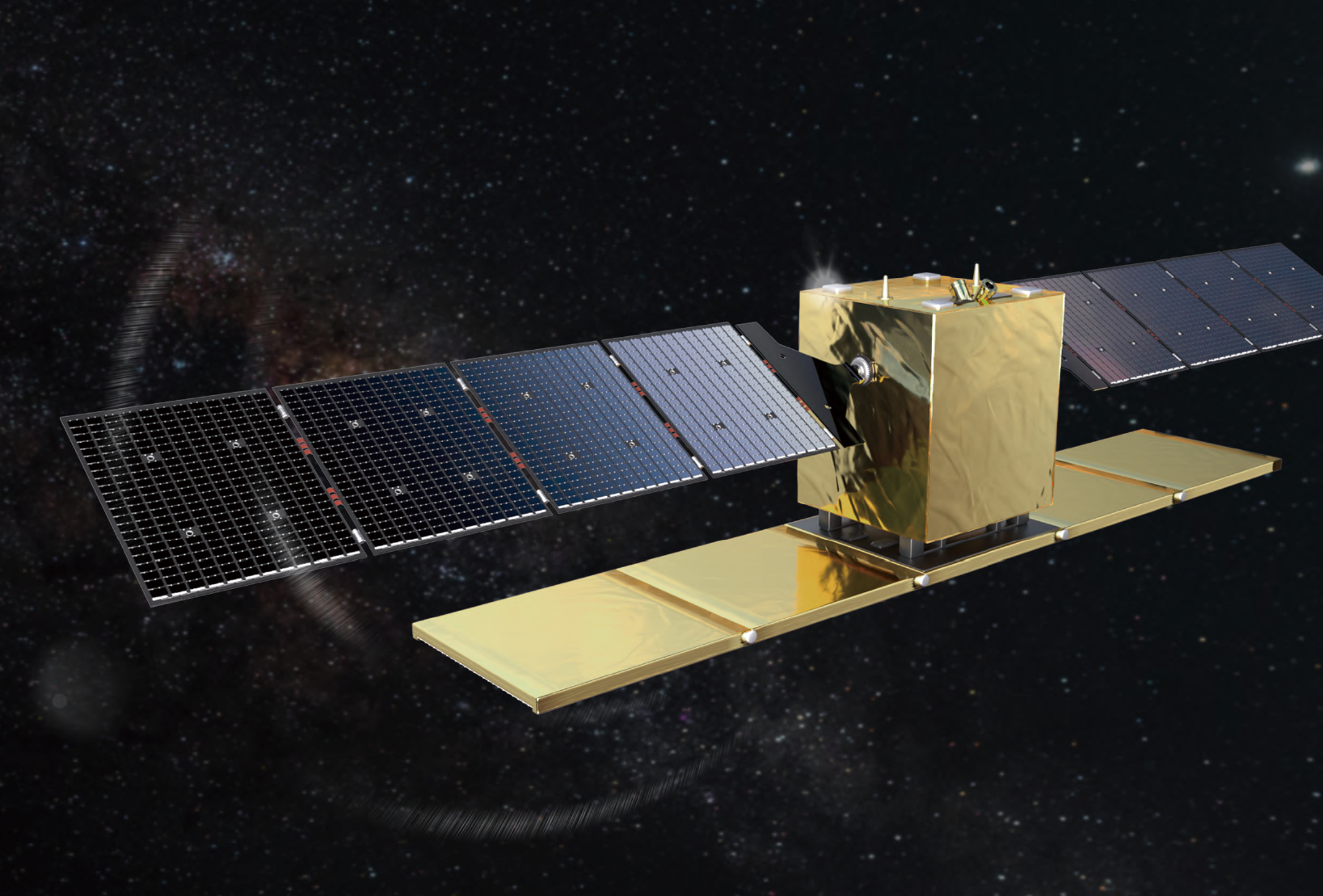

Wonder Explore
Synthetic Aperture Radar (SAR) Satellite
- High-Performance Functional SAR Satellite
- 1 Meter Resolution
- Phased Array Antenna
- All-Weather Remote Sensing

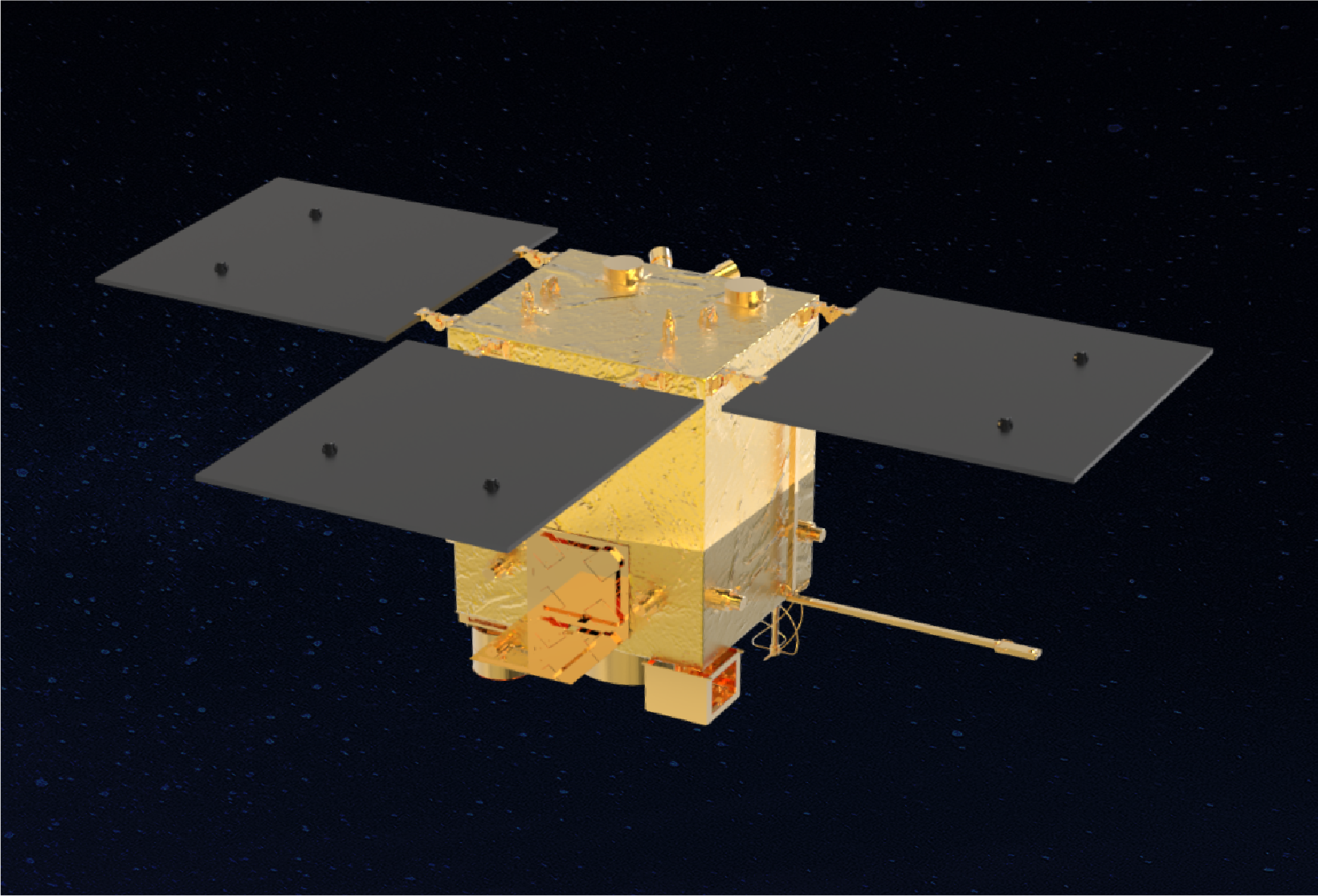

Wonder Journey
Optical Satellite High-Resolution
- Mass of 80kg±5kg
- Optical Resolution <1 Meter
- Computing Power ≥300TOPS

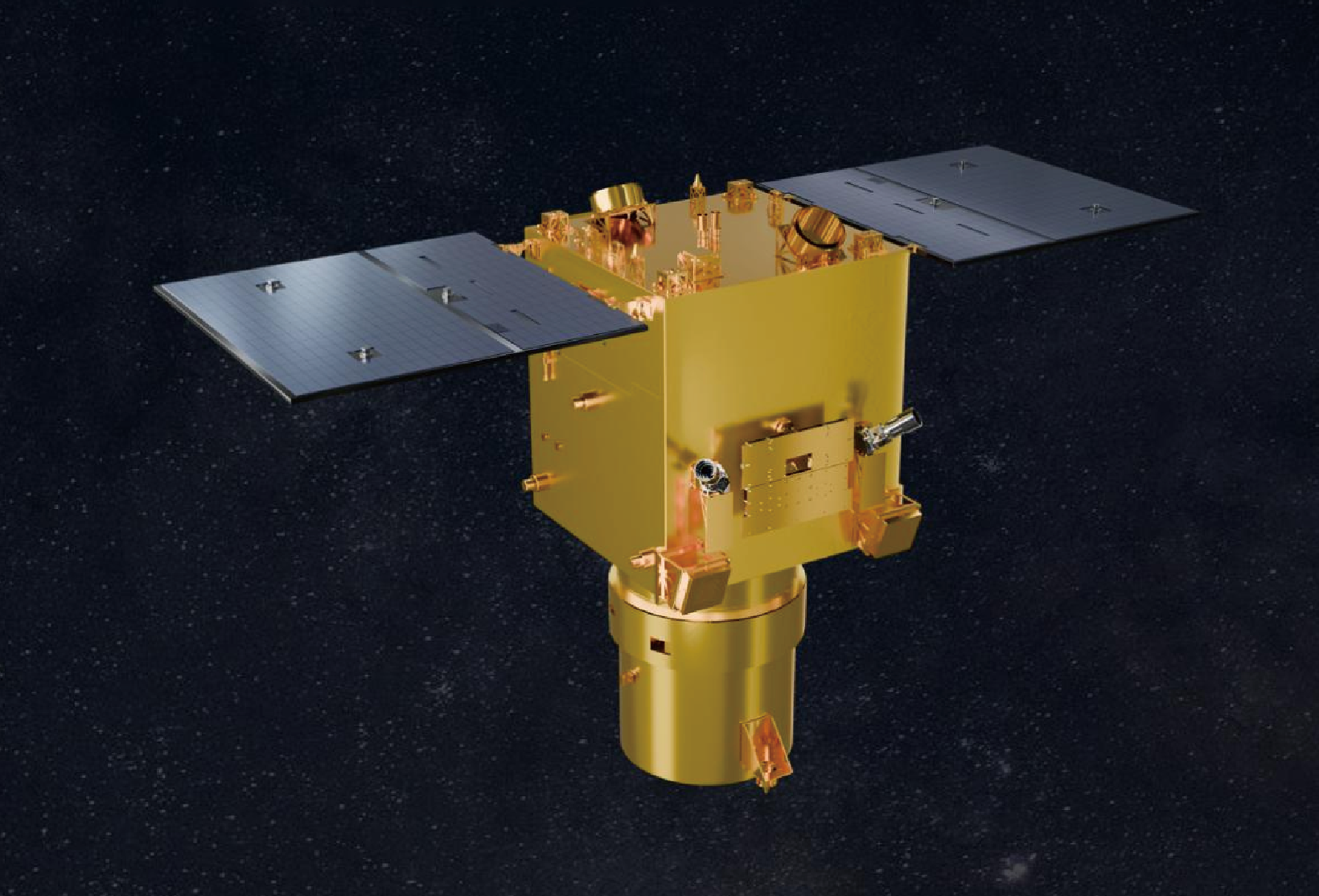

OSE PNTRC-GFO1
High Resolution Optical
- 0.5m Resolution (PAN)
- 12km Swath Width
- 5~7day Revisit Period
- 2m Resolution (MS)
- 12bits Dynamic Range
FEATURES & ADVANTAGES
Wide-Scale with Fewer Limitations
Satellite remote sensing can perform a wide range of earth observation tasks in a short period of time. Macroscopic observation is very important for the analysis of earth environment and resources.

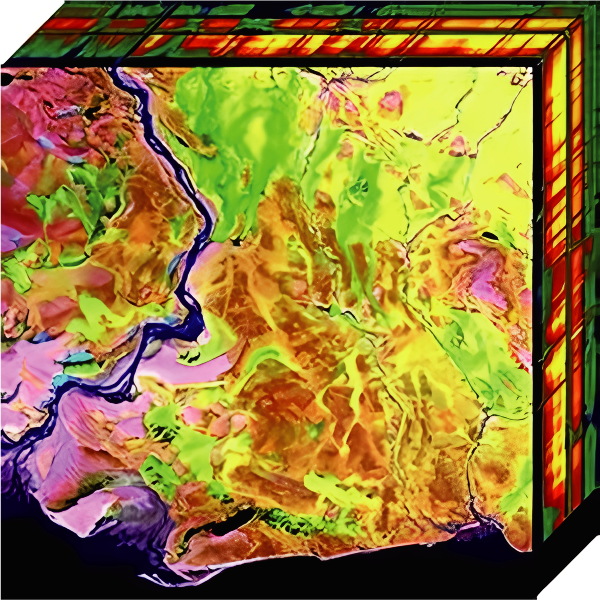

Effectiveness with Low Cost
High effectiveness, short time cycle of information acquisition for dynamic monitoring, which is incomparable to manual field measurement and aerial photogrammetry. The overall cost is far lower than other remote sensing modes.

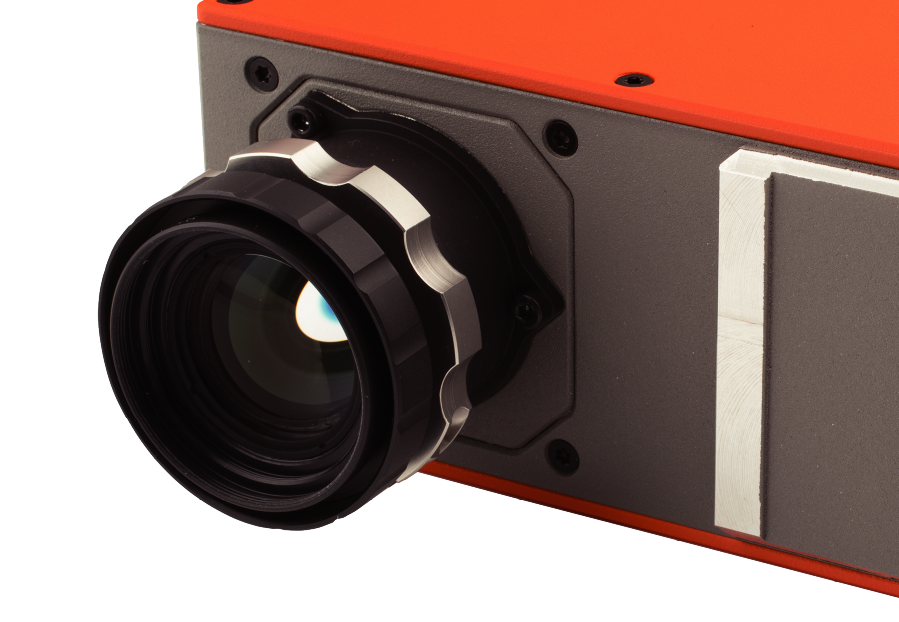

High Accuracy Multi-Application
Various types of sensors (visible light, hyperspectral, microwave,etc.), combined with high spatial resolution, to achieve more accurate and detailed earth observation; Different data types are applicable to multiple application scenarios.

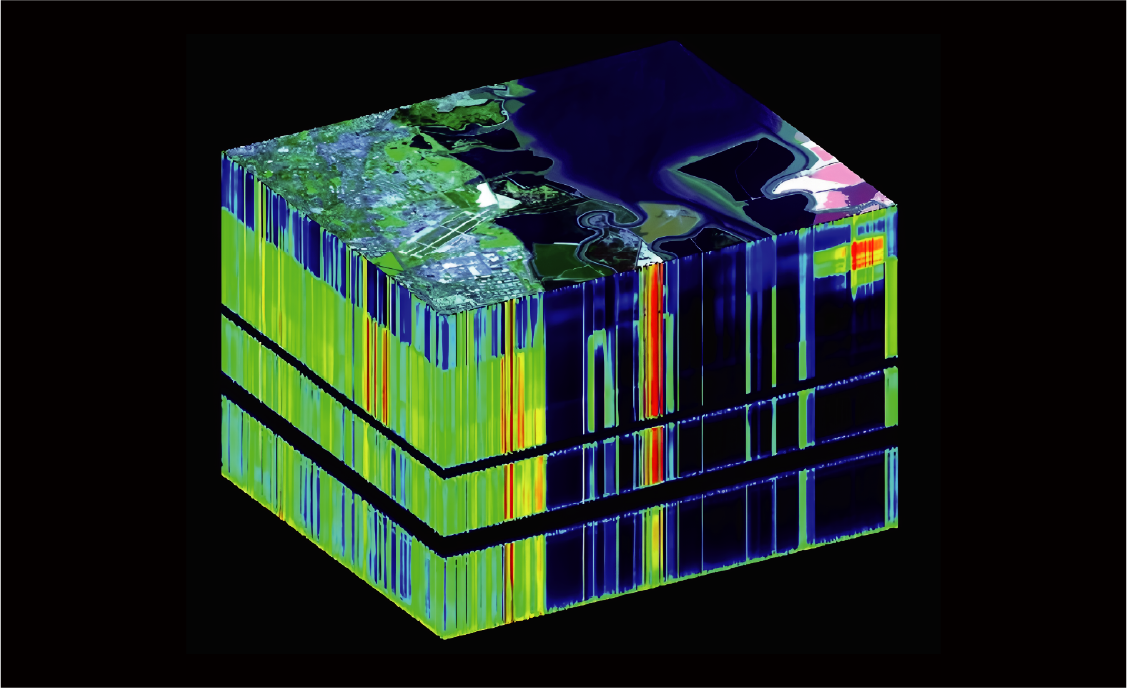

MULTISPECTRAL / HYPERSPECTRAL TECHNOLOGY
Multispectral refers to the spectrum detection technology that can simultaneously obtain multiple optical spectrum bands (usually more than or equal to 3) and extend to infrared and ultraviolet light on the basis of visible light. Hyper-spectroscopy is a fine technique that can capture and analyze the spectrum point by point in an area, usually with hundreds or even thousands of bands. Because unique spectral "signatures" at different spatial positions of individual objects can be detected, substances that are visually indistinguishable can be detected.

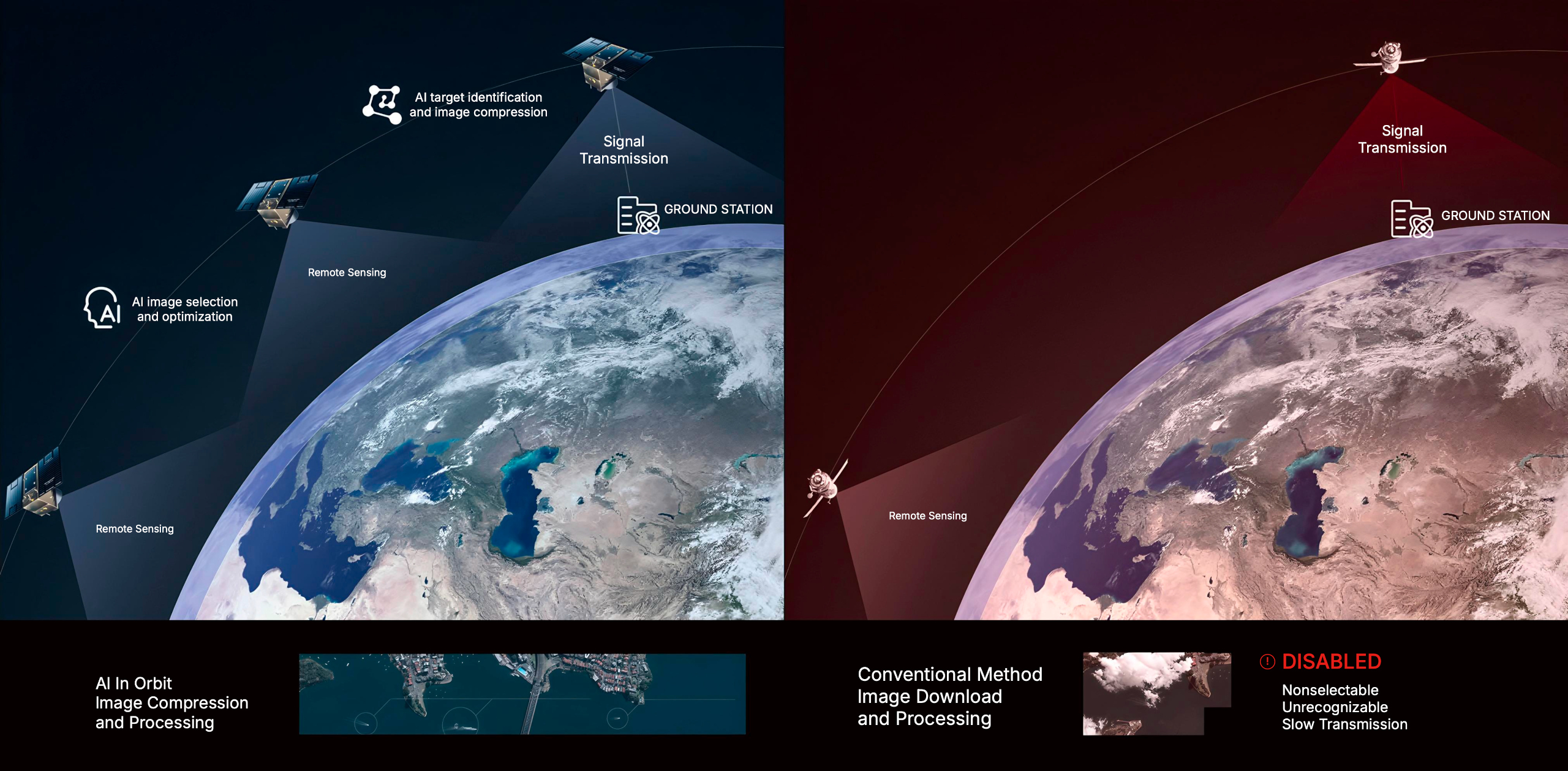

THE WORLD'S MOST ADVANCED EDGE AI
The Wonder JourneyTM series use the super maneuverability of the satellite platform, combined with the traditional optical super-resolution algorithm and machine learning super-resolution algorithm, will break through the physical limitation of the resolution of the optical lens and make what you see clearer. The Wonder JourneyTM satellites are equipped with the world's most powerful spaceborne EDGE Al platform. Through Al-driven on-orbit image processing and analysis, the on-board data processing and analysis capabilities are improved by hundreds of times, greatly reducing the pressure on data downlink, and improving the effciency of remote sensing satellite data acquisition and application.

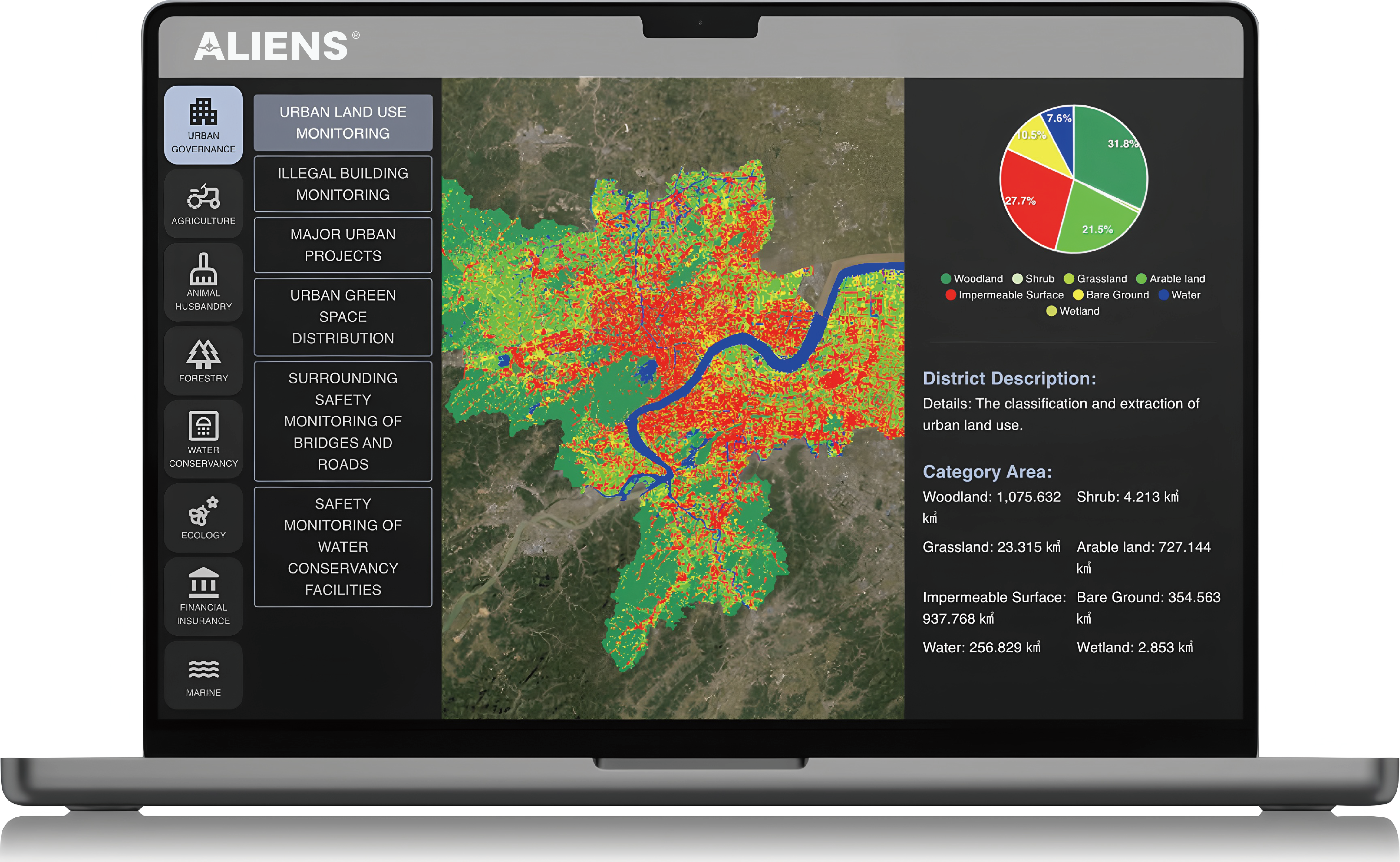

SAAS SPATIOTEMPORAL ANALYTICS
Aliens aims to provide affordable, accessible and actionable application experience from SaaS based remote sensing services. The Intelligence spatiotemporal platform is based on multi-source data including satellite remote esensing imagery, integrated with application modules for 13 major sectors and dozens of sub-categories, including agriculture, forestry, water conservancy, natural resources, urban management, ecological environmental protection, disaster emergency response, finance and insurance, etc. Provides various government and enterprise customers with online service capabilities ranging from statistical analysis to.
END-TO-END WHOLE LIFE CYCLE MONITORING
In remote sensing-based agriculture application, Aliens provides end-to-end whole life cycle monitoring services, from classifications of crops, crop growth condition monitoring, crop yield prediction, precise fertilization, precise irrigation to natural disaster and pest monitoring.
Aliens partners with prestigious institutions such as China Agriculture University, and Remote Sensing Laboratory of Ministry of Agriculture and Rural Affairs of P.R. China.
The company has accumulated rich resources, e.g., various satellite and labelled samples dataset, models, retrieval algorithms and feld experiment sites and equipment. Aliens is accessible to the largest database for crop sample identification, high spatial and temporal feld-scale near real-time crop growth monitoring model, near real-time agricultural disaster monitor and forecast model, deep learning based high precision crop yield estimation model etc.
Asset
Management
Irrigation
Fertilization
Monitoring
Monitoring
Monitoring
Prediction

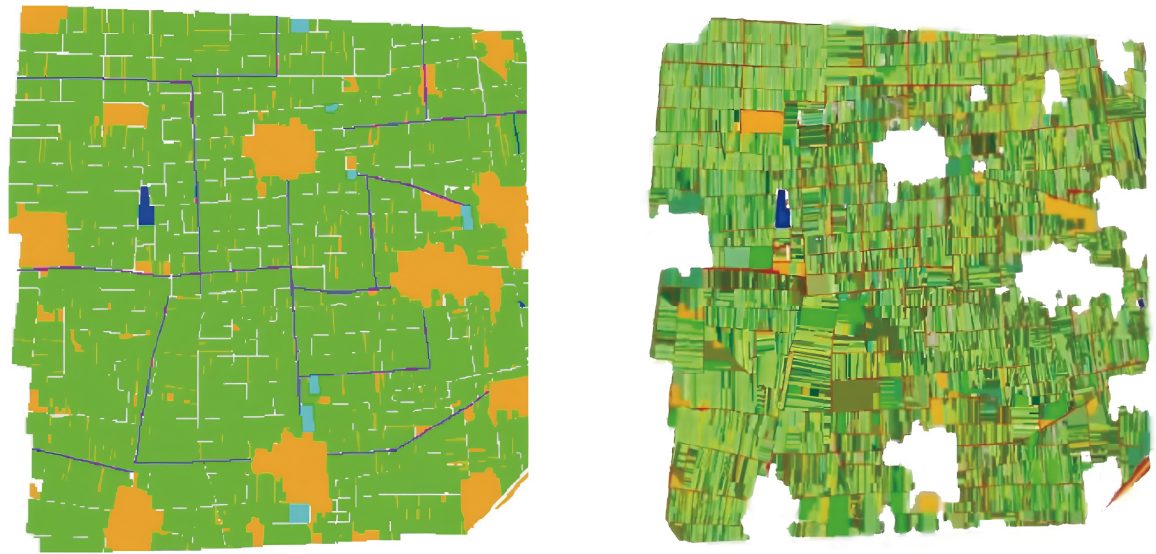

Agricultural Asset Management
Crop classifcation is the first step and a key foundation for agricultural asset management. With spatio-temporal surface reflectance dataset, Aliens has achieved the classification of various crops, such as wheat, rice, corn, etc. Based on machine learning and deep learning, Aliens is continuously aggregating Al capabilities in classification of crops.
Case Study
Satellite remote sensing has been used to generate crop maps of the major crops (maize, soybean, and rice) in Northeast China, the leading grain production region in China where one-fifth of the national grain is produced. Via satellite remote sensing data, researchers have produced crop maps with high overall accuracies (OA) based on ground truth data. This use case permits assessing the performance of the soybean rejuvenation plan and crop rotation practice in China, facilitating crop management decisions for regional and national food security.

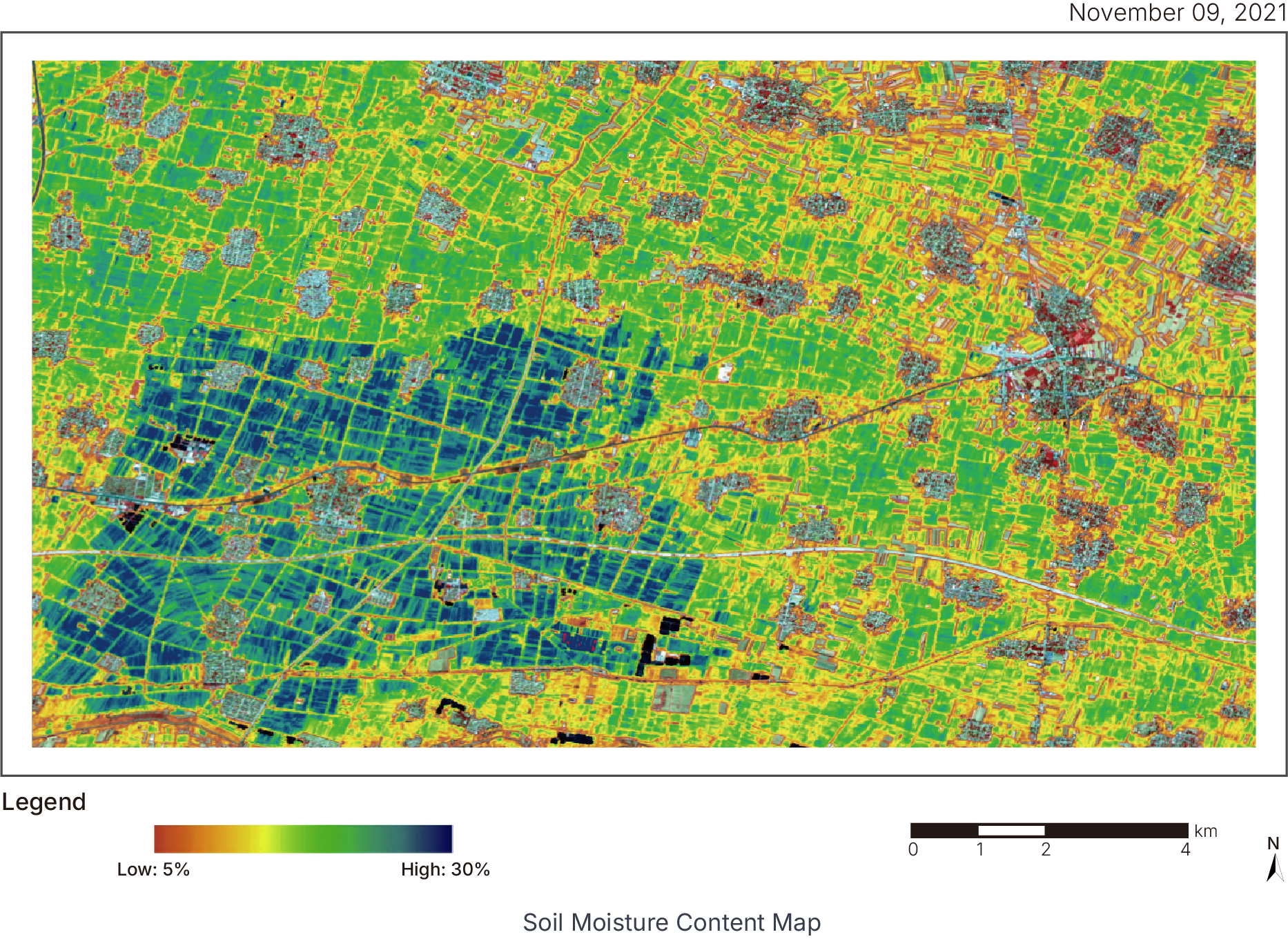

Precision Irrigation
A major challenge of modern agriculture is the limited metering of irrigation despite increasing pressure on both groundwater and surface water resources in many agricultural regions worldwide. Reliable measurement of soil moisture is critical for establishing sustainable irrigation practices. Aliens's broad-area monitoring enables effcient detection and tracking of large-scale soil moisture, delivering vital insights that can serve as the basis for precision irrigation.
Case Study
Satellite remote sensing has been used to map soil moisture levels across China. In Hebei Province, researchers have used GF-3 satellite data to successfully detect and monitor soil moisture in agricultural felds. The satellite estimations achieved high accuracy when compared with feld soil moisture measurements. The results provided insights for local government and farmers to improve irrigation precision, establishing a more sustainable irrigation model.
Precision Fertilization
Understanding soil fertility status is key to optimizing fertilizer applications throughout the season. Managing soil nutrients is often a delicate balance. Farmers and agronomists need to detect nutrient defciencies that can result in yield and quality losses, ensuring crops are getting what they need to thrive. Meanwhile, over-fertilization remains a concern, which could increase costs and make crops more susceptible to diseases, pests, lodging, and weed competition. Aliensʼs high resolution satellite solutions provide reliable detection and monitoring of soil fertility, facilitating improved nutrient management programs.
Case Study
Satellite remote sensing has been used to perform soil organic matter monitoring in China. As an important crop production and cultivation base in China, Heilongjiang Province has vast cropland for soybeans, maize, and rice, etc. The magnitude of the cropland presents challenges for cost-effective soil fertility assessment and precision fertilization. Researchers have successfully mapped the spatial distribution of soil organic matter (SOM) content of the croplands in the region based on satellite remote sensing data, proving an affordable diagnostic tool to conduct SOM analysis on a large scale and facilitate corrective nutrient applications.

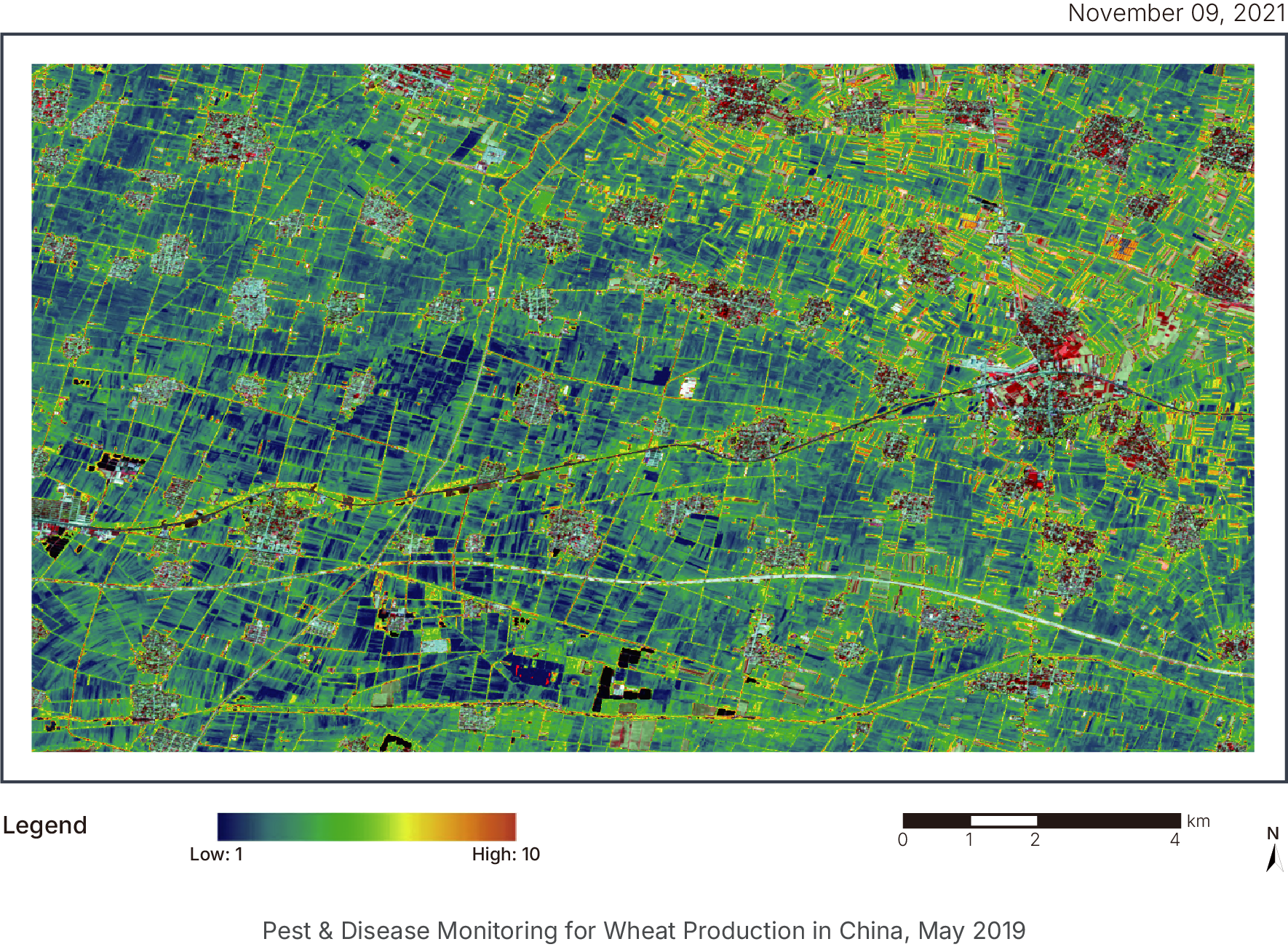

Pet & Disease Monitoring
Plant pests and diseases impact food security and cause substantial economic losses in agricultural settings worldwide. Monitoring crop health and detecting pests and diseases at early growth stages are essential to control spread, facilitating sustainable and cost-effective management practices in crop fields. Aliens provides early detection of pests and diseases with dense vegetation analysis and crop health alerts.
Case Study
Satellite remote sensing has been used to conduct nationwide monitoring of major wheat pests and diseases, such as stripe rust, sheath blight, aphids, and Fusarium head blight. By integrating satellite imagery data, meteorological data, and field measurements, researchers have achieved spatial distribution mapping, area measurements, as well as severity classification of the above mentioned wheat pests and diseases. These analyses have provided timely insights for agricultural agencies to implement measures to achieve effective control and enhance food security.

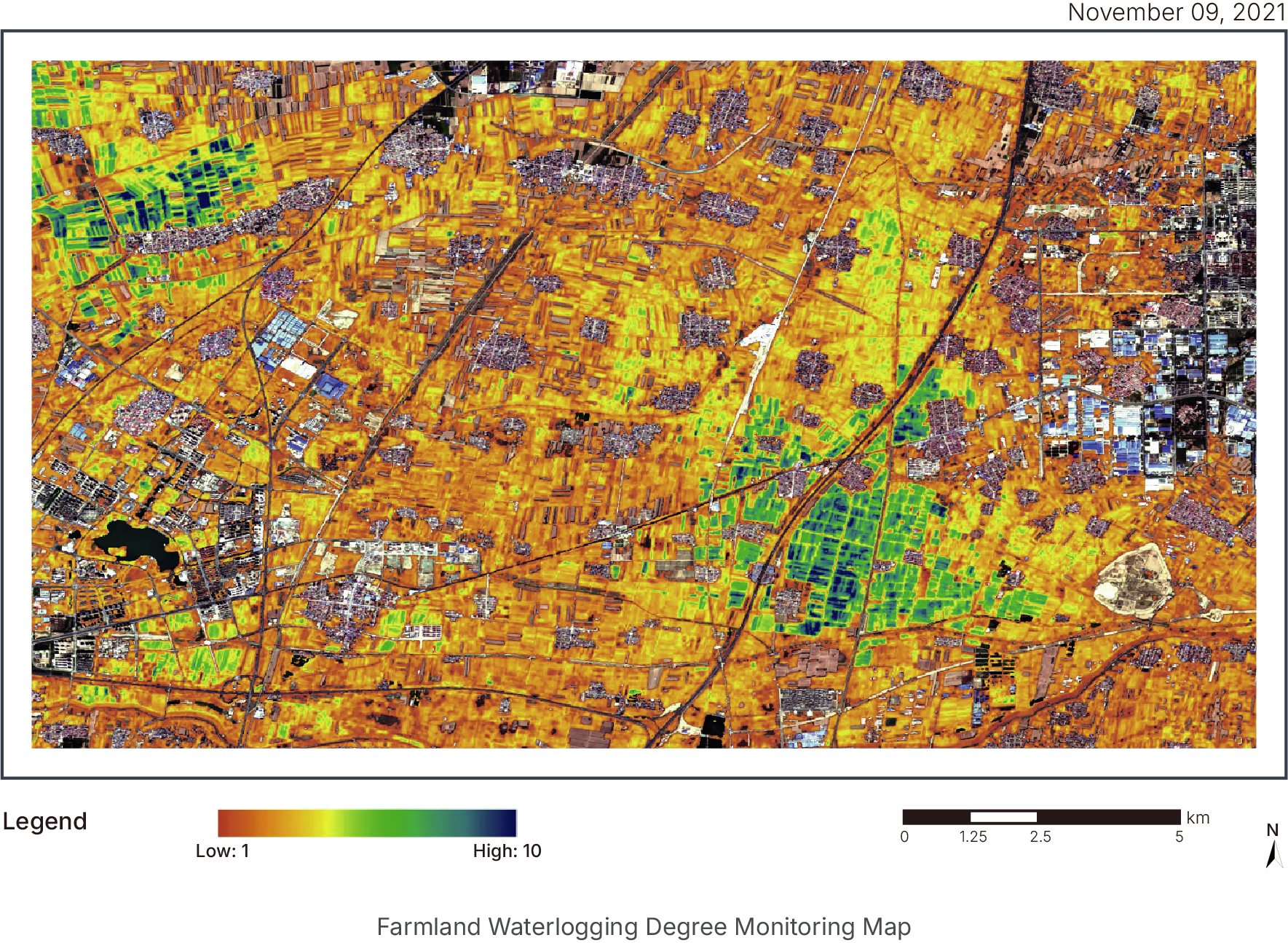

Natural Disaster Monitoring
Agriculture sector is relatively fragile in severe weather conditions. Timely forecast of natural disaster and objective assessment of financial lose are critical for land owners and insurance institutions. Natural disasters can be well monitored by high spectral, high spatial resolution sensors, e. g. Unmanned Aerial Vehicle (UAV) data, Synthetic Aperture Radar (SAR) data, and Solar Induced chlorophyll Fluorescence(SIF). Various disasters could be monitored such as flood, drought, cold, lodging,plant diseases, and insect pests.
Case Study
Our research team has used satellite remote sensing to assess flood impact on croplands in Shanxi Province. In this use case, researchers used SAR satellite imagery to extract information on the affected croplands. A combination of qualitative and quantitative analysis was conducted, regarding different levels of impact to croplands and their exact sizes. The assessment provided data-driven insights for government and insurance institutions to accurately and promptly size flood losses. The figure illustrates the impact of flood (in blue) in Shanxi Province, October 2021.

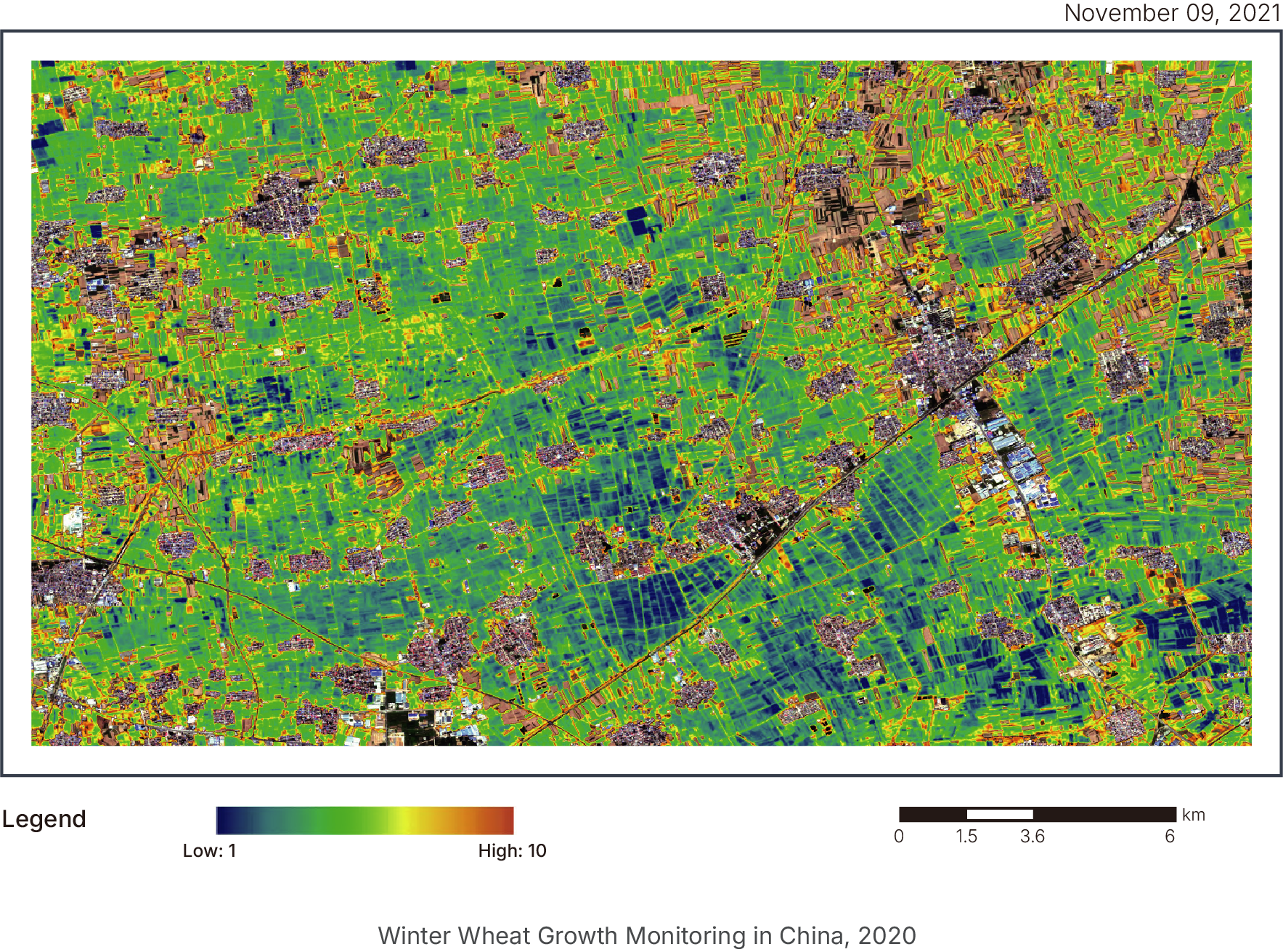

Growth Monitoring
With dynamic growth monitoring capabilities, Aliens helps government and land owners identify growth stages and respond to health issues in need of treatment. Vegetation growth condition is extracted by the retrieval of leaf area index, chlorophyll content, water content, and nutrient contents, with the radiative transfer model and remote sensing dataset.
Case Study
Our research team has conducted dynamic yearly monitoring of winter wheat from major production provinces in China. In this use case, researchers conducted crop growth analysis based on satellite imagery data collected during the growing season.The growing condition was monitored and compared for each grid with the condition from the previous year. Our analytics has supported government to make better informed crop management decisions, enabling farmers to monitor and maximize their crop health each season.

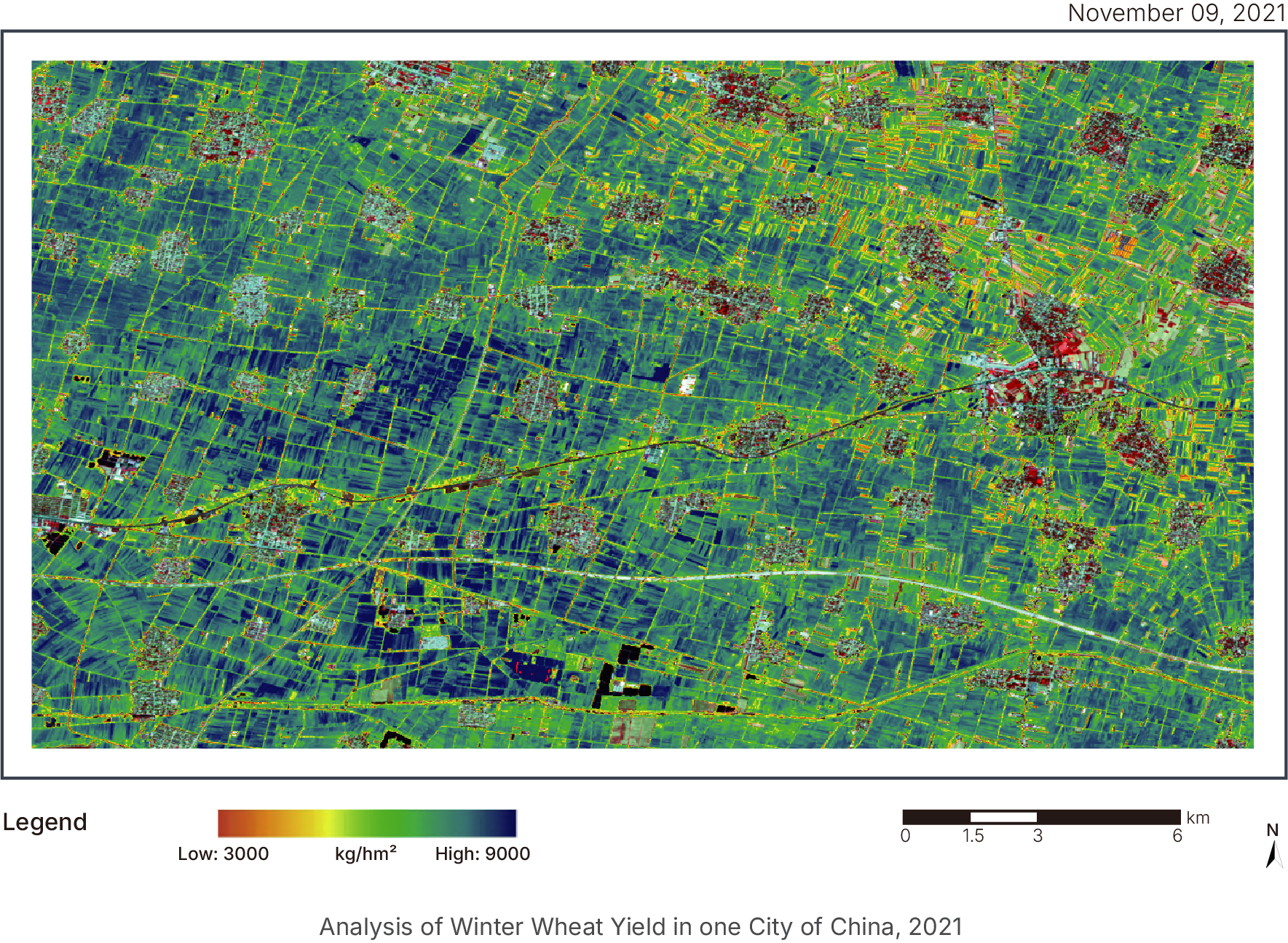

Crop Yield Prediction
Agriculture policymakers need accurate information on crop yield. The agricultural community, particularly smallholder farms, are at particular risk of losing cropland productivity. In order to support more sustainable agriculture policies, accurate, high resolution satellite data are essential. Aliens integrates high resolution satellite data, meteorological data, and field measurements to produce high-accuracy crop yield assessment. We leverage machine learning to generate data-driven yield predictions.
Case Study
Our research team has used satellite remote sensing to perform yearly assessment for major winter production provinces in China. We estimated winter wheat yield by integrating crop growth model and remote sensing images. The results from our estimates are highly consistent with the statistical data. Our analytics has facilitated locals and policymakers identify underperforming fields, implementing measures to increase productivity in needed areas.
DATA ANALYSIS
Pest & Disease Detection & Monitoring

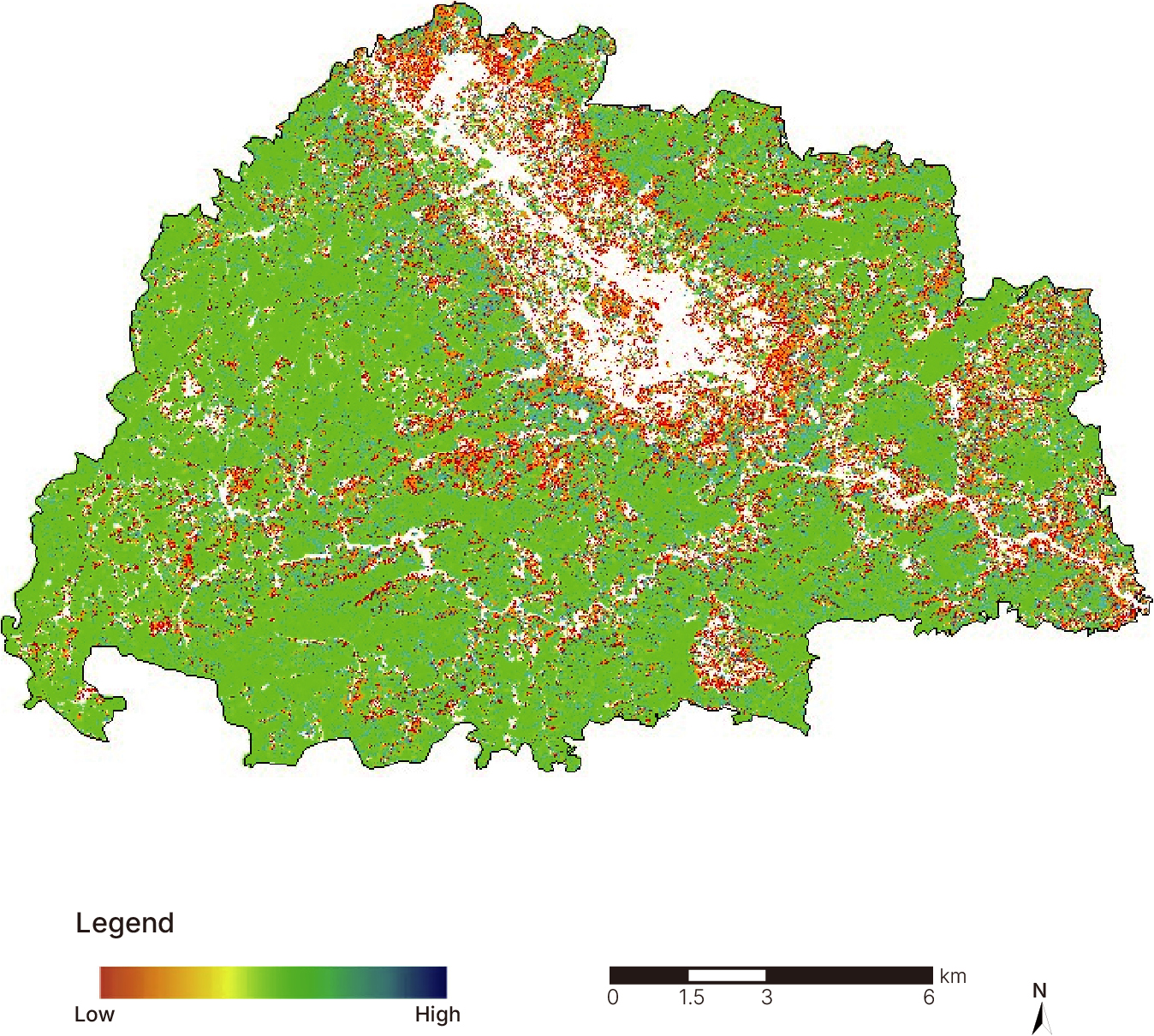

Statistics of Forest Volume

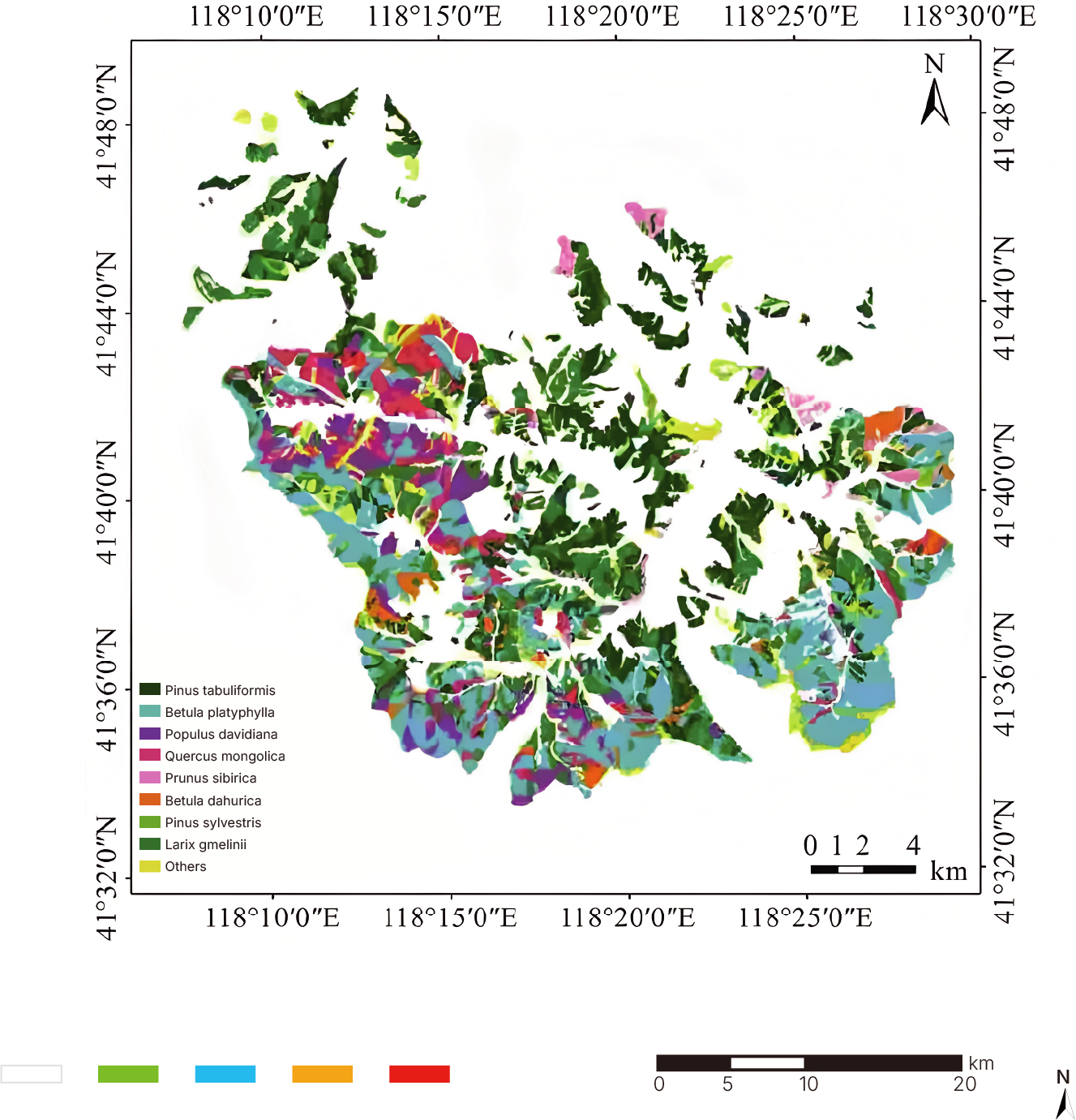

Tree Species Identification

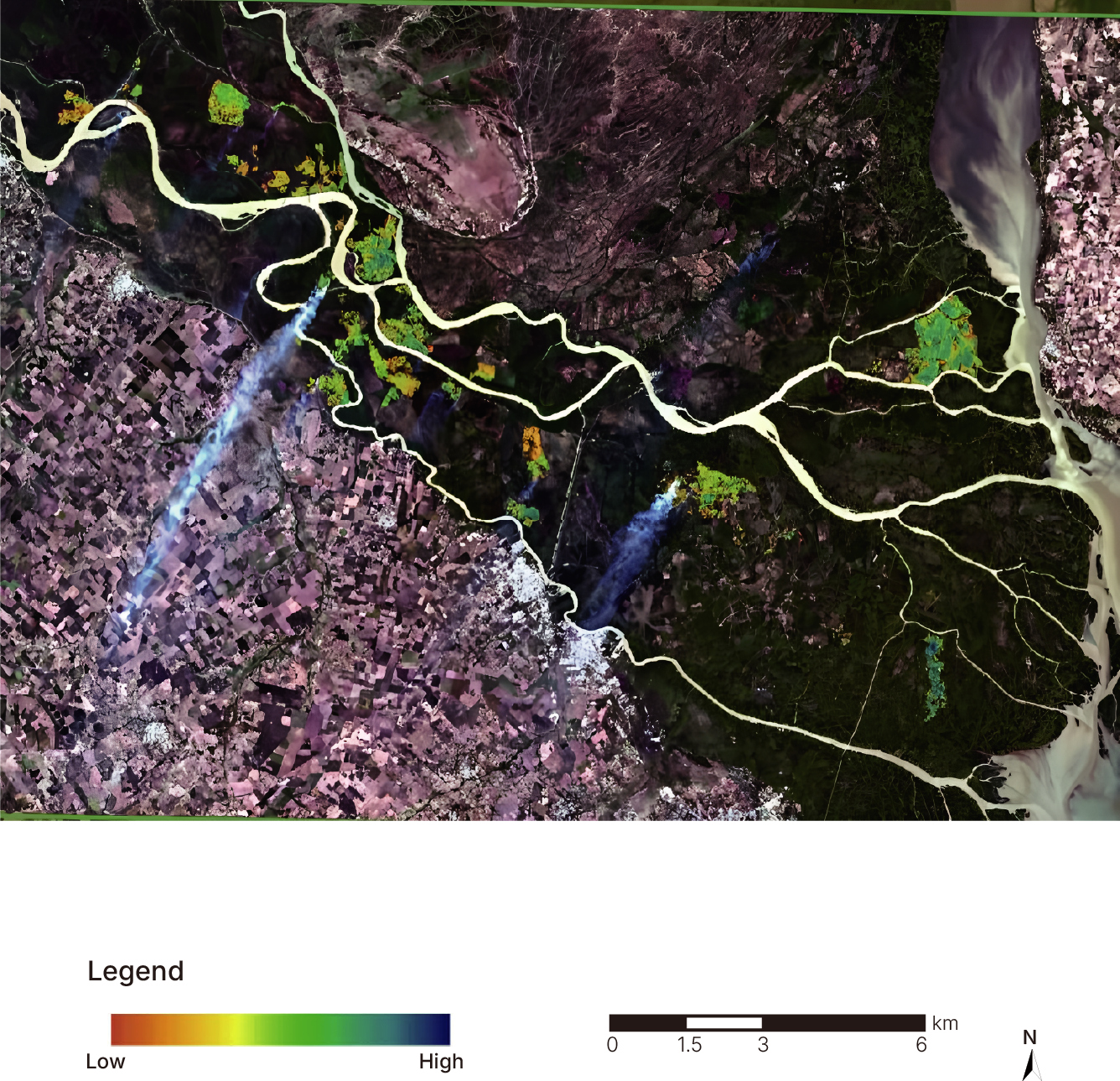

Forest Fire Monitoring

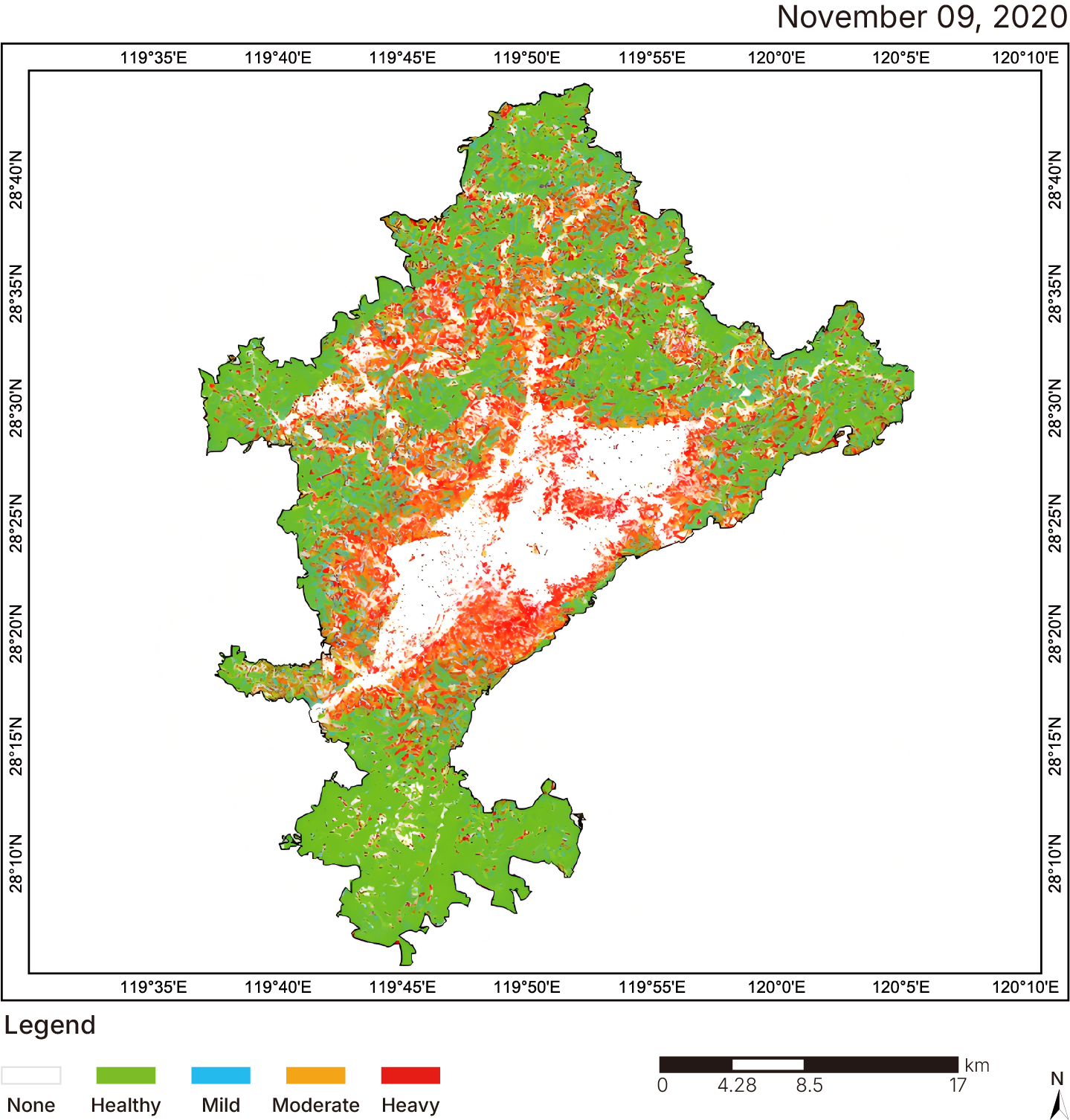

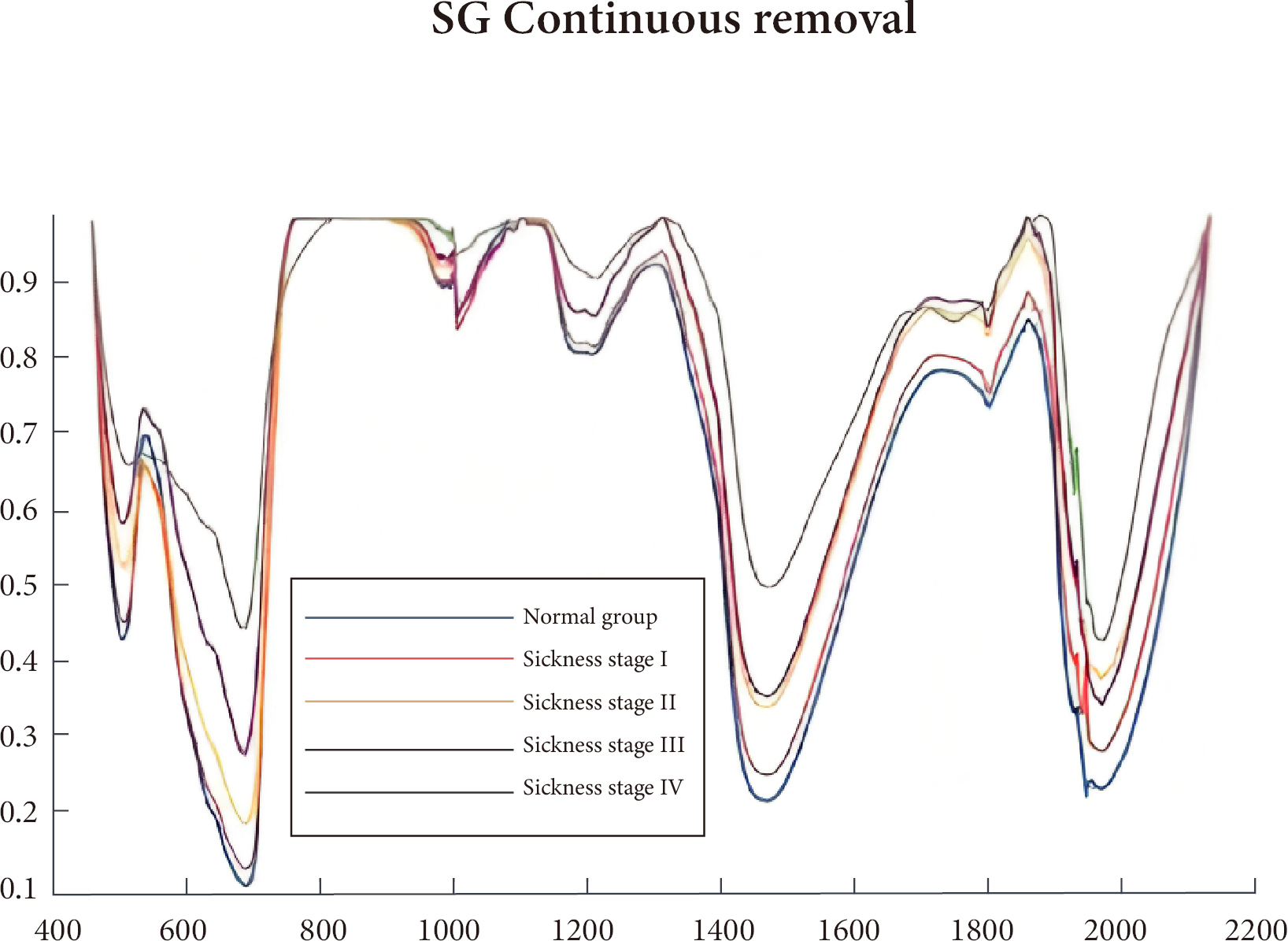

FORESTRY PEST & DISEASE MONITORING
Full-Area Coverage
Satellites provide continuous, wide-area monitoring with no blind spots.
Multi-Source Data Integration
High temporal resolution enables weekly or monthly reports.
Early Detection
Spectral inversion helps assess plant health at different stages for early warning and intervention.
AI-Based Identification
Multispectral AI models reduce manual inspection, improving efficiency.
Efficient Workflow
Satellites detect anomalies quickly; ground teams verify selectively, reducing labor and speeding up response.
Showcase

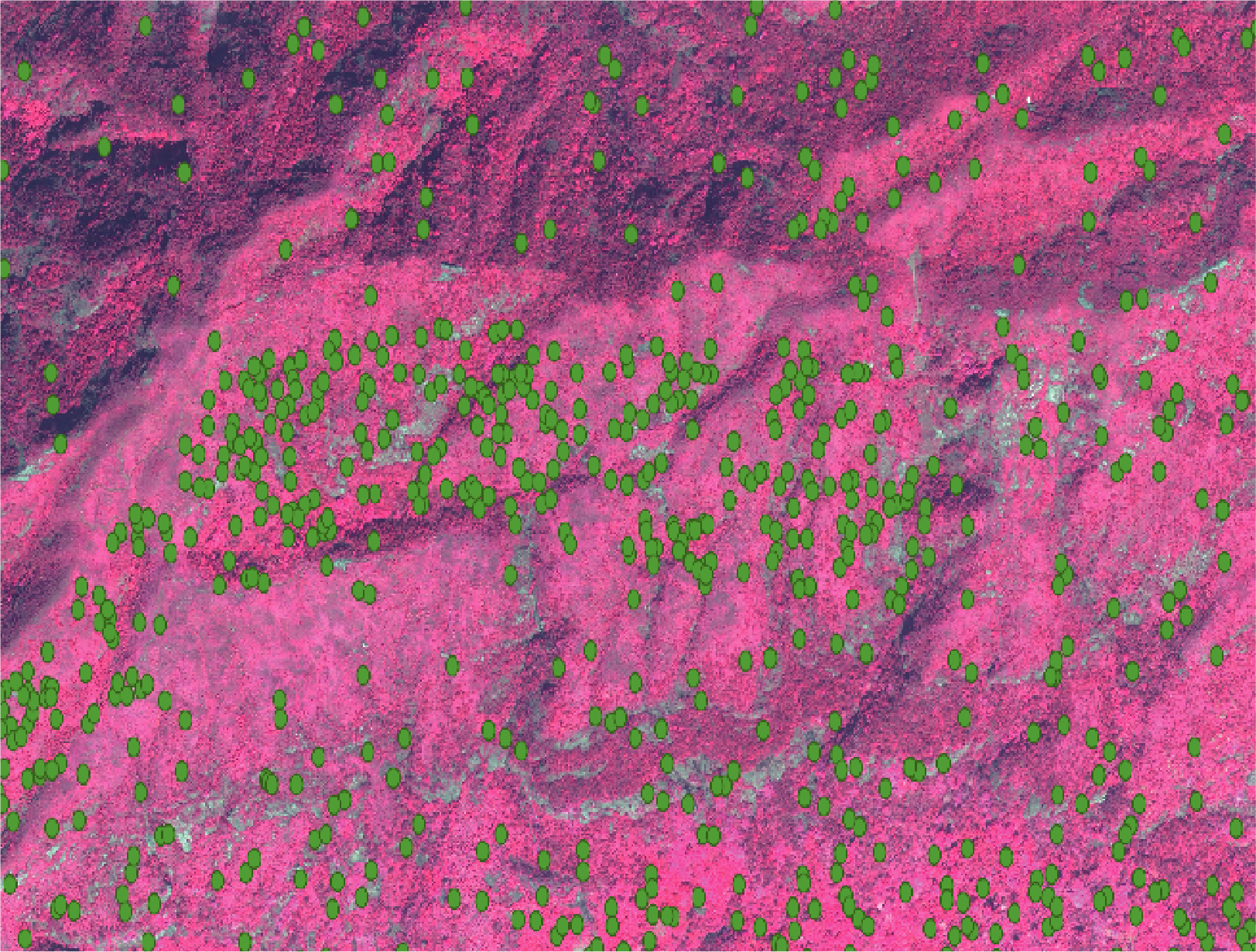

In 2022, Wenzhou, we used satellite multispectral data and AI to monitor pine wilt disease, locating individual infected trees with over 87% accuracy. Multi-temporal data tracked outbreak changes and control results.
In just 3 days, completed full-area scanning of 1,391 km² in Wenzhou, identifying 9,916 infected trees. Results successfully passed client inspection.
The Provincial Forest Protection Station reported an interpretation accuracy of 94.82% in random inspections.

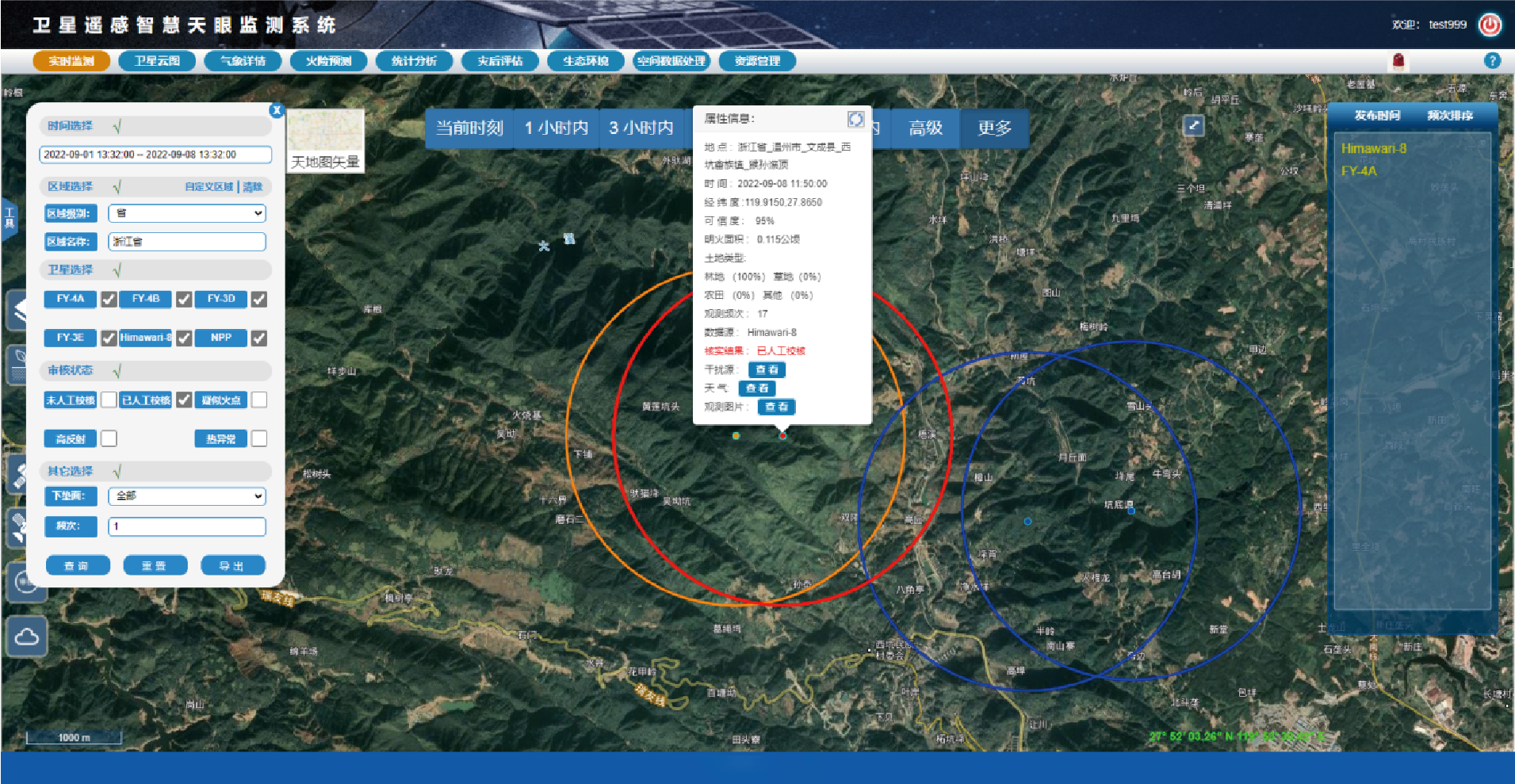

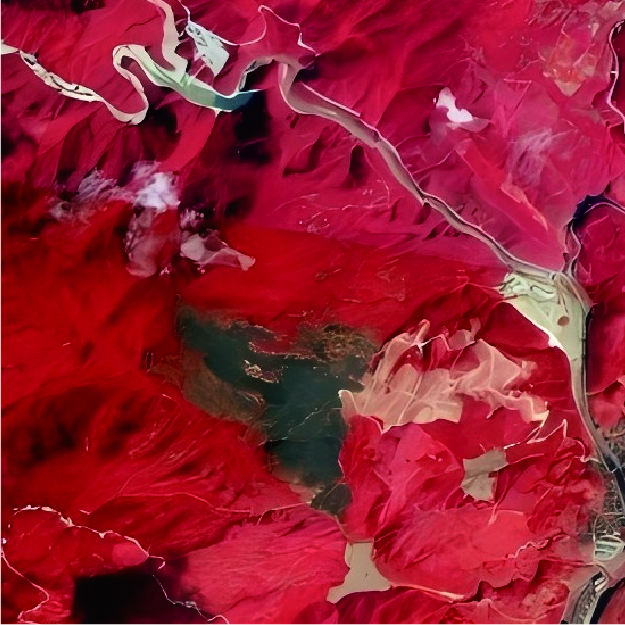

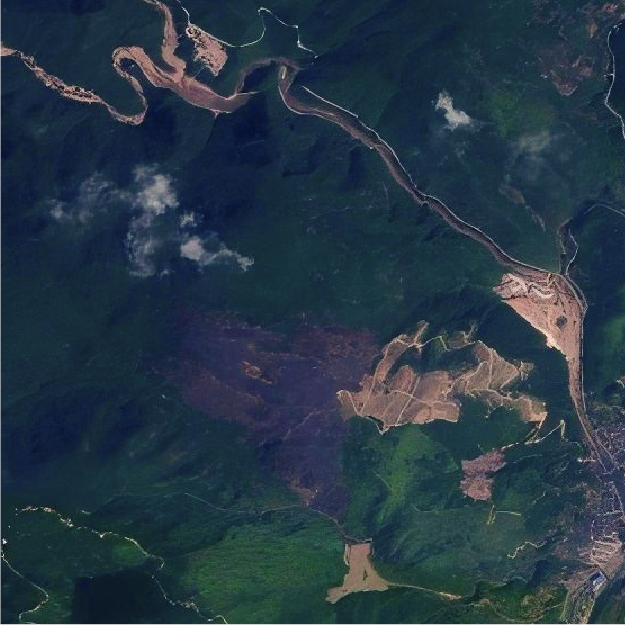

FOREST FIRE MONITORING & WARNING
Satellite monitoring offers wide coverage, frequent updates, and high accuracy. It helps detect forest fires early, track fire spread, estimate burned areas and losses, monitor vegetation recovery, forecast fire risk, and oversee forest resources. It is the main tool for forest fire early warning today.
Early Detection
Spectral inversion helps assess plant health at different stages for early warning and intervention.
AI-Based Identification
Multispectral AI models reduce manual inspection, improving efficiency.
Efficient Workflow
Satellites detect anomalies quickly; ground teams verify selectively, reducing labor and speeding up response.
Showcase

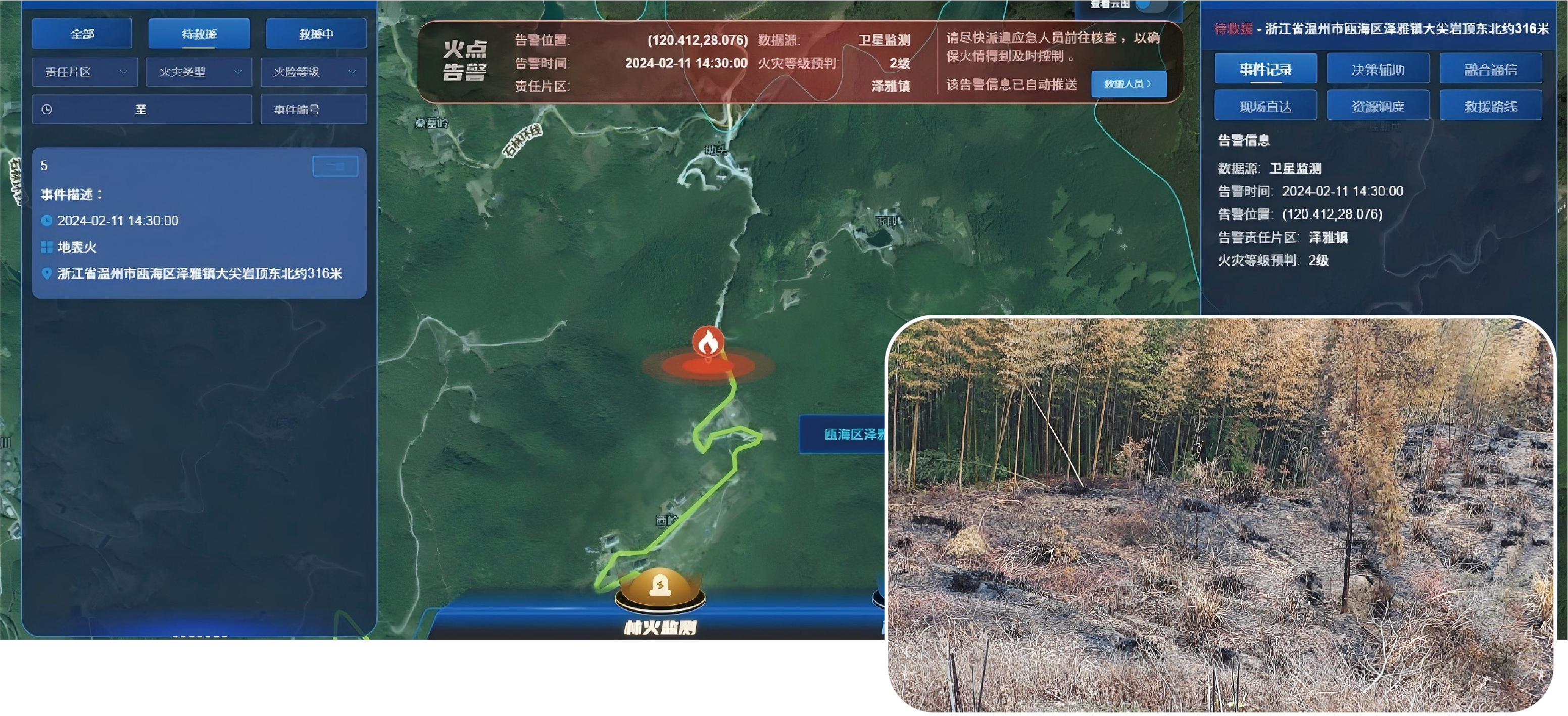

On February 11, 2024, a fire was detected about 316 meters northeast of a town. The system sent an alert via SMS within 12 minutes and reported the result immediately. After verification, responders confirmed the fire location was accurate and quickly organized firefighting efforts, successfully controlling the spread.

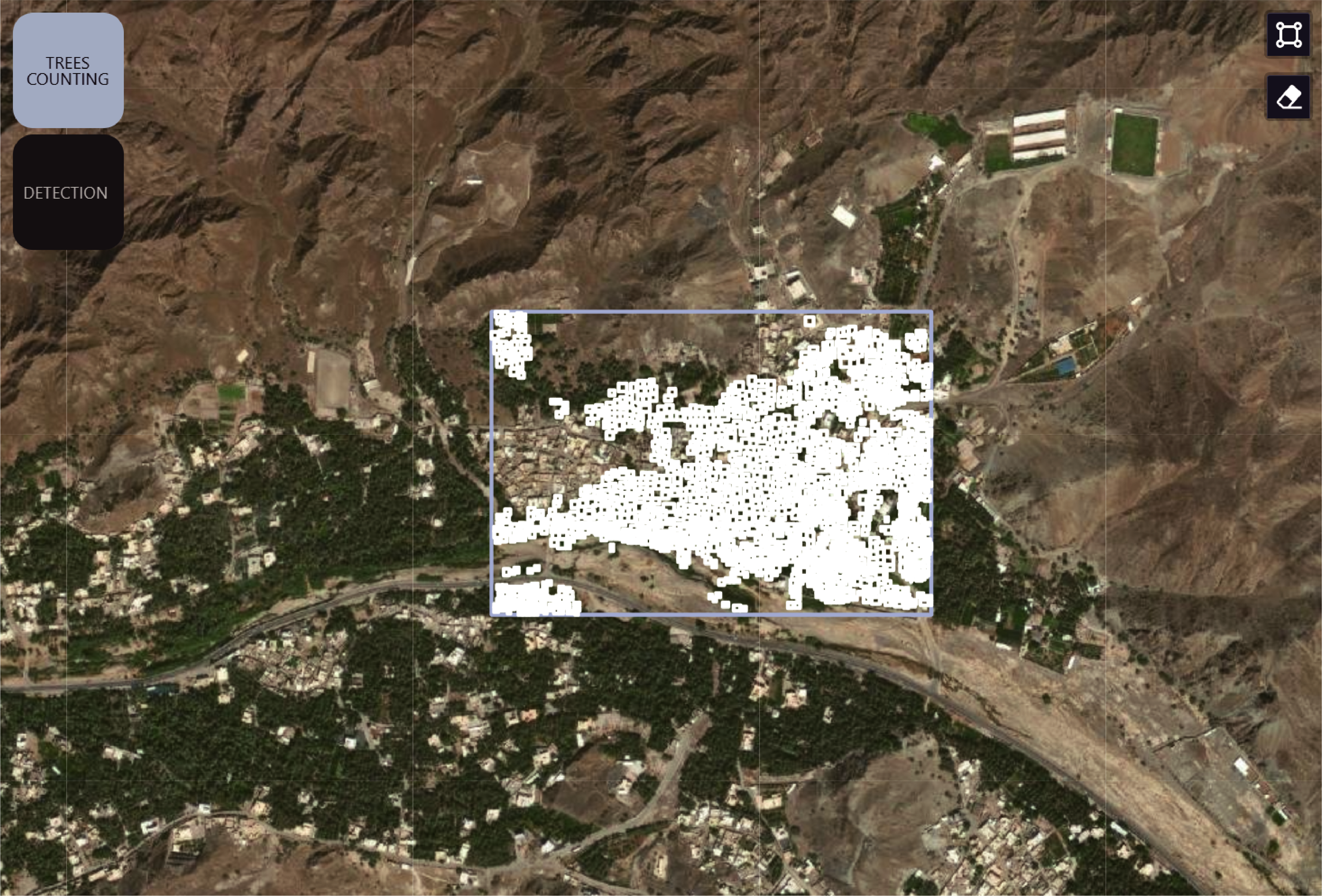

AI TREE COUNTING
Since ancient times in commerce, nutrition, landscape enhancement, and other activities in the Mediterranean, Middle East, and North Africa regions. Currently, it is estimated that they cover more than 1.3 million hectares.
We adopted a novel remote sensing approach to recognize and monitor date palm trees and red palm weevil (RPW),using computer vision techniques. In many countries, palm trees are considered decorative trees planted in residential neighborhoods, and the RPW threat may lead to trees breaking down and hence a higher likelihood of endangering human lives. Ourwork indicates future potential and paves the way for deploying satellite imagery data to monitor RPW at large-scale as well as provide guidance for practitioners.
Imagery retrieval date: 2022/11
Count: 1707
